SUPERIOR BENEFITS

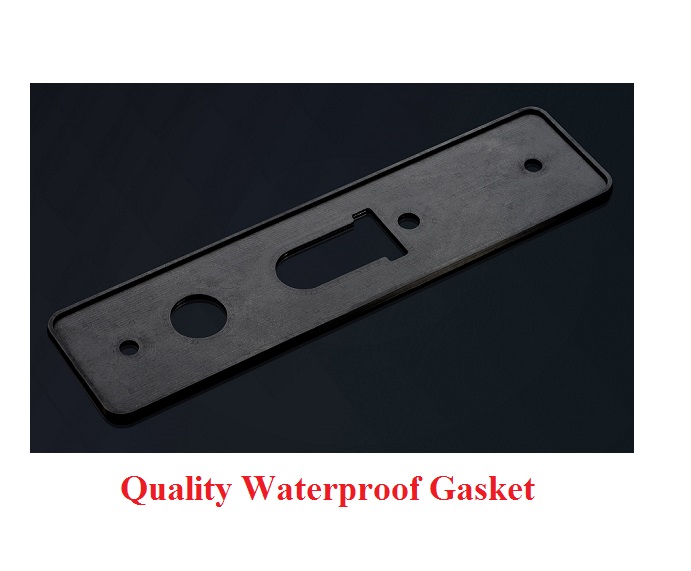

★ Waterproof guaranteed high graded SS304 material for both panels and handles; Waterproof treatment for card PCB reader, Waterproof rubber gasket, Self-error detective, very durable and attractive;
★ Warranty is 2 years.
★ Can be integrated with wireless iMaid system to realize hotel wireless online status functions, such as To check if guest is in room or out and how much time he stays, To get fast response from guest if DND or CLEAN is requested, To get fast response from guest if DND or CLEAN is requested
★ One card system to be integrated with lift reader, parking reader, common door, swimming reader, club reader, restuarant reader, POS…etc
★ CE, FCC certified
★ Adopt imported micro-motors which ensure 500,000 running times without problem
★ RFID Temic or Mifare PHILIPS® technology, 100,000 times write life for keycard, contactless reading keycard
★ ANSI mortise
★ Free-rotating while locked
★ Powered by AA battery, easy replacement
★ Openings 20,000 times for one new battery pack
★ Mifare card required
★ Low Battery Voltage warning(beep and red light)
★ Step by step installation software, easy operation. OEM acceptable.
★ Meeting passage mode activate by passage card for meeting case
★ 3 public passage modes: Hotel Passage, Building Passage and Floor Passage
★ Do not disturb(DND)function for hotels: While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
★ Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
★ 38mm-65mm thickness door
CARD USEAGE
★ Guest card: Issued from reception to open its own room with expiring date
★ Master card: Hold by management or GM or manager to access all rooms of hotel with deadbolt opening
★ Floor card: Hold by clean staff to enter the rooms in one floor.
★ Building card: Hold by manager to enter the rooms in one building
★ Lost card: Used to suspend the lost guest card
★ Emergency card: Enter the all rooms when emergency
SPECIFICATIONS
★ Model: TK-9001
★ Power: (AA)battery x 4pcs
★ Low power alarm voltage: 4.8V
★ Communication: 13.56MHz Mifare, 125KHz Temic(with keycard)
★ Card support: Mifare, Temic ®
★ Inductive Distance: 2-5CM
★ Working Tempreature: -30℃~60℃
★ Working Humidity: 15~85%RH
★ Static current: < 10uA
★ Working current: < 150mA
★ Memory: 992 Transactions include Time/Date/Card ID/Card type/Room ID
★ Gross Weight: 3.2KG
★ Package: 6pcs
★ Packing box: Front/Back panel, PCB, mortise, cylinder, keyx2, battery-pack, manual/Strike, screw bag
